50GHZ 96 Channel AAWG Mux Demux Black / Blue / Orange / White Color

Name: 50GHZ 96 Channel AAWG Mux Demux Black Blue Orange White Color
Brand: Seacent
Price: 1 USD

Wholesale 50GHZ 96 Channel AAWG Mux Demux Black / Blue / Orange / White Color from china suppliers

Brand Name : Seacent

Model Number : AAWG-96CH 50GHZ

Certification : ISO9001,ROHS

Place of Origin : Guangdong,China

MOQ : 1

Payment Terms : L/C, T/T

Delivery Time : 5-8 work days

Fiber type : 900um loose tube,Corning SMF-28e,Dual Fiber,SMF,Common G657A fiber with 900mm loose tube

Package : 19'' Rack Mount,Module/Rack,LGX,ABS,1U Rackmount

Warranty : 3 years

Channels : 17CH,40CH,48CH,96CH or Customized

Connector : LC/UPC,LC,ST,FC,SC

Color : Black,Blue,Orange,White

Contact Now

Low cost 50GHZ 96CH AAWG Wavelength Division Multiplexer Demultiplexer

Description:

Athermal AWG (AAWG) have equivalent performance to standard Thermal AWG(TAWG) but require no electrical power for stabilization. They can be used as direct replacements for Thin Film Filters(Filter type DWDM module) for cases where no power is available, also suitable for outdoor applications over -30 to +70 degree in access networks.

Technical Parameters

Parameter	unit	Flat top	Gaussian	Flat top	Gaussian
Number of channels		16/32/40/48		80/88/96
Channel spacing	Ghz	50		50
Channel frequency	Thz	Blue band=1528.773~1547.316		C band=1526.827~1564.679
Channel frequency	Thz	Red band=1545.720~1564.679
Wavelength accuracy	nm	±0.05	±0.05	±0.05	±0.05
1db bandwidth	nm	>0.18	>0.12	>0.18	>0.12
3db bandwidth	nm	>0.28	>0.20	>0.28	>0.20
Insertion loss (passband)	dB	<4.5	<3.7	<5.5	<4.5
Adjacent channel crosstalk	dB	>27		>27
Non-adjacent channel crosstalk	dB	>30		>30
Total crosstalk	dB	>24		>24
Insertion loss uniformity	dB	<1.2		<1.5
Polarization loss	dB	<0.5	<0.5	<0.5	<0.5
Return loss	dB	>40
Dispersion	ps/nm	±10
Operating temperature	ºC	-20~70
Size (length * width * height)	mm	1207012.3		1309011.3

Features:

Low Insertion Loss,Low PDL,High Channel Isolation
Mass production
Compact package
MUX/DEMUX Functionality
Athermal Design, Electrical Power is Not Required
Dense wavelength division multiplexing system
Realize upstream and downstream dual-frequency band by using single-chip microcomputer

Application:

Real-time line monitoring system
CATV, FTTH, RO
ADM, LAN, WAN system
Signal, network monitoring
GPON, EPON

Business advantage

Product:

(1) High reliability, high stability, small size, low insertion loss

(2) 1*N 2*N multiple channel forms

(3) 1260-1650nm full-band operation

(4) Industrial working environment: -40 ° C - + 85 ° C

(5) ISO9001-2015 quality system, Telcordia GR-1209-CORE, GR-1221-CORE standard certificate

(6) Customization: can be customized according to customer requirements

(7) Product process: industry leading

Service:

(1) Experience in serving large customers for more than 8 years

(2) Independently provide product solutions and packaging solutions for customers

(3) Have strong strategic partners

Product Tags:

athermal awg

awg arrayed waveguide grating

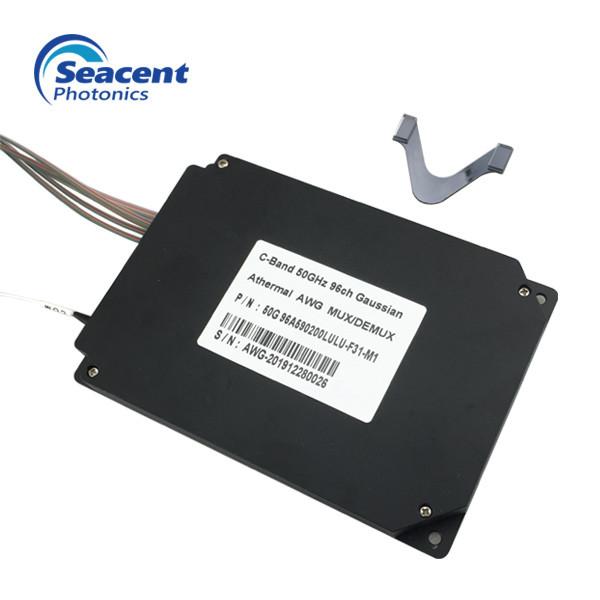

50GHZ 96 Channel AAWG Mux Demux Black / Blue / Orange / White Color Images
